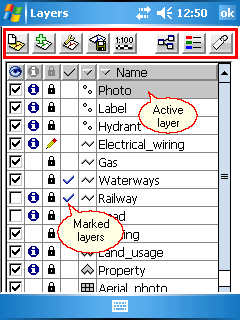

The Layers panel contains the following buttons:
Opens a pop-up menu with the following options:
oDatabase: Opens the New db Layer panel to create a new geodatabase layer
oFile: Opens the Create layer file panel to create a new vector layer
New Layer - pop-up menu
More details about the relevant commands to this button can be found in the Layers sub-menu topic.
Opens a pop-up menu with the following options:
oDatabase: Opens the Add db Layer panel to add a geodatabase layer to the map view
oFile: Opens the Append layer panel file to add one or more layers to the map view
Add Layer - pop-up menu
More details about the relevant commands to this button can be found in the Layers sub-menu topic.
Opens a pop-up menu with the following options:
oRemove: Removes selected layers from the list
oMerge: Merges selected layers from the list. The merged layers can be saved into a new vector layer file.
Layer operations - pop-up menu
Only the selected vector layers can be merged into MAP, DGN, DXF and MIF multi feature vector format: more than one feature type i.e. point, line and polygon within one layer
Opens a pop-up menu with the following options:
oDatabase: Opens the Save db Layer panel to save (export) the active layer as a geodatabase layer
oFile: Opens the Save as file panel file to export the active layer into another file format or to save it with a different new name.
Add Layer - pop-up menu
More details about the relevant commands to this button can be found in the Layers sub-menu topic.
Opens the Scale panel. Sets the display scale range of the layers.
Opens different Source paneles by data source type as:
oVector layers, text and tabular files
to display and edit the properties of the data source.
Layer classification, edit classes
Opens different paneles by data source type as:
oVector layers --> Classes panel. The Classes panel lists all the thematic classes to the active DigiTerra Explorer vector layer as well as the symbology defined for the layer.
oRaster layers --> Raster Options panel
oTIN layers --> DEM Options panel
Opens the Labels panel. Labels a vector layer with the contents of the selected attribute field. Sets label properties.
