The Antenna tab is used to configure the receivers external Antenna.


new-16x16 = new feature




Availability of the "Antenna"  tab in different editions





The Antenna tab contains the following controls:

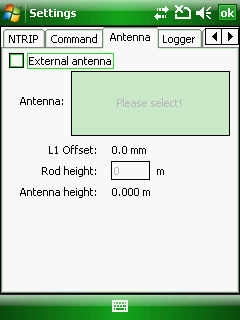

The Antenna tab



External antenna: Enables to use external antenna


Antenna:  The entire list of supported antennas is available for selection if the External antenna check-box is checked. To select/change an antenna tap on the large  Please select!  button and select in the tree by manufacturer on the Select Antenna panel. The chosen antenna model can now be seen on the place of the  Please select!  button.

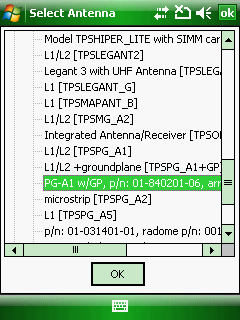

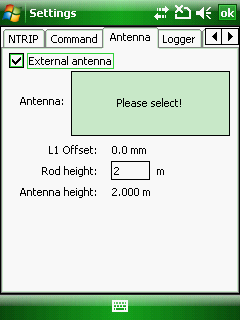

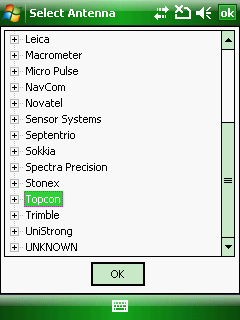

Selecting an external antenna

SettingsAntenna-Selected   SettingsAntenna-SelectedTopcon SettingsAntenna-SelectedTopconPGA1   SettingsAntenna-SelectedTopconPGA1Closed


L1 Offset: Vertical Phase Center Eccentricity for L1. This value in mm refers to the vertical distance between the top of the pole (or the base of the antenna) and the L1 phase center of the selected antenna. The L1 Offset is = 0 mm if there is no selected external antenna.


Rod height: Height of the rod in meters. The Rod height is = 0 m if the there is no selected antenna. Default Rod height = 2 m.


Antenna height = Rod height + L1 Offset. It is global variable (for all layers) and its value will be deducted from the HAE (Height Above Ellipsoid).

k-tip-iconAbout the height calculation please also have a look at this tutorial at

k-tip-iconPlease note, that the Antenna height is not applied on the GNSS Survey dialog as in version 6, but you can still apply different Up/Down offset values there for any layer.
