dtToolMeasure Measure

Measures positions, distances, area and angle in the map view by added vertices on the map at the tapped locations (in point mode). Display the Editing context menu and tap on the Finish option to end and view the measurements in the Geometry panel. The Measure tool remains active for measuring until another tool is activated.



Keyboard command: M



Tap / Left click: adds vertex on the map at the tapped location.

Drag:  adds vertex on the map at the tapped location with displayed crosshairs.

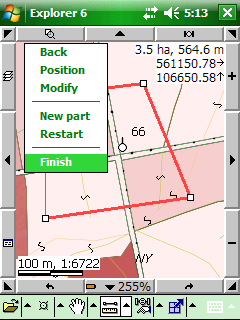

Tap and hold / Right click: displays the Editing context menu to finish the measurement and open the Geometry panel.

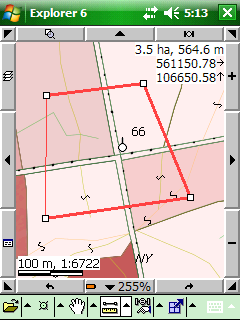

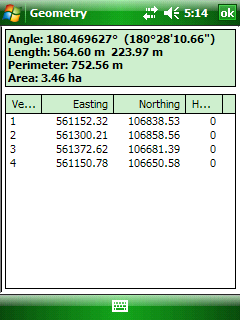

Vertices on the map view for the measurement and the measurement information in the Geometry panel

measurement_vertices_on_the_map_view   measurement_finish measurement_geometry
